Liney Machine Thimble

(3 entries)

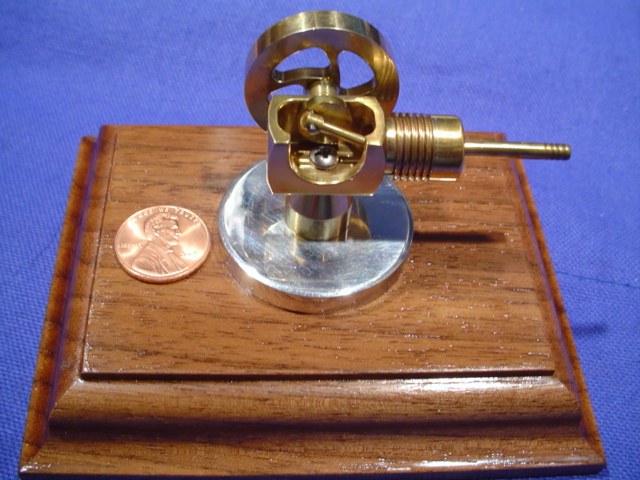

TSB Entry: 201
Approx. Date: 2006
Owner: IndianaRog
Owner Website: http://www.indianarog.com
Notes: " Design by machinist Lance Liney, uses a novel ""blow by"" style piston .30 inches in diameter. Instead of having valves, the piston tips sideways on the return stroke allowing the steam to blow by the piston. Flywheel is just 1-1/8 inches in diameter. Engine all brass except aluminum/wood pedestal. Incredibly high rpms, will run quite fast on just human breath. "
Video: http://www.youtube.com/watch?v=mCxFdgX5Gjg

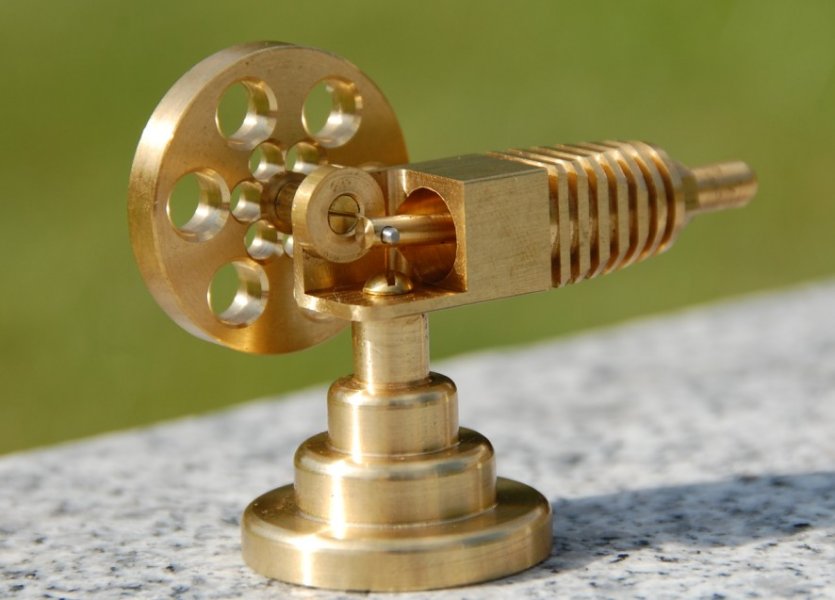

TSB Entry: 567
Approx. Date: 2011
Owner: Benchmark
Owner Website: http://dampmaskiner.webs.com
Notes: This Liney Thimble kit was put together by Dean in the USA
Video: http://www.youtube.com/watch?v=mCxFdgX5Gjg

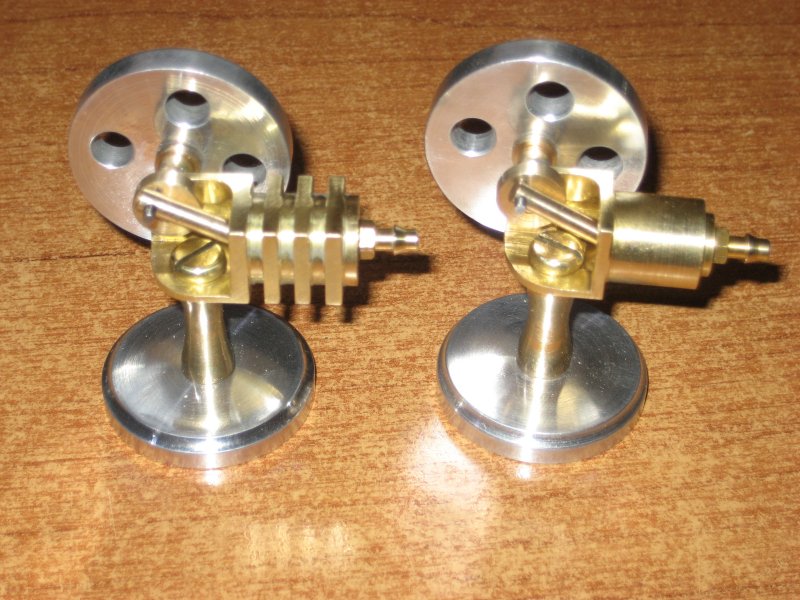

TSB Entry: 927
Approx. Date: 2014
Owner: Kevin
Owner Website:
Notes:
Video:
